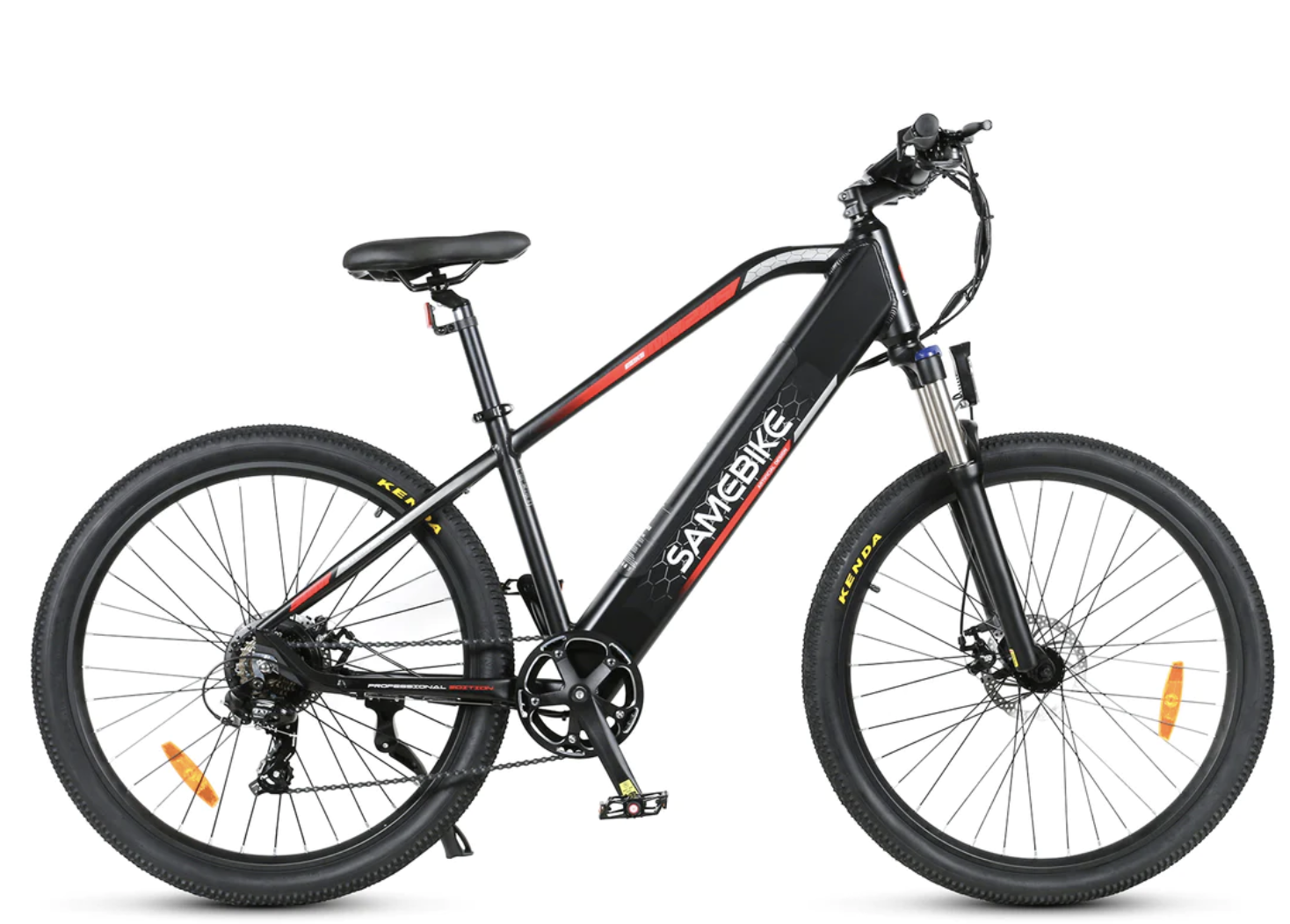

Electric bicycle MY275 Big Wheel 110KM Range Mountain Electric Bike

  • Electric bicycle MY275 Big Wheel 110KM Range Mountain Electric Bike
  • Electric bicycle MY275 Big Wheel 110KM Range Mountain Electric Bike
  • Electric bicycle MY275 Big Wheel 110KM Range Mountain Electric Bike
  • Electric bicycle MY275 Big Wheel 110KM Range Mountain Electric Bike
Model No.︰MY275
Brand Name︰OEM
Country of Origin︰China
Minimum Order︰50 pc
Share on:

 Total 19 Related Items
Prev56789Next

Product Description

1.27.5 inch large size more suitable for the EU body size larger users
2. Using the hidden lower tube battery box design
3. Using 13AH, DMC East magnetic 18650 electric core, ultra-long relay range electric mode up to 50KM.
4. Using 500W Annetta latest silent technology high-speed motor
5. Using the center TFT intelligent programmable LCD color LCD meter
6. Aluminum alloy CNC tooth plate
7.27.5*2.125 KENDA thicker tires, stronger grip ability

Battery Capacity 48V 13AH
Hub Motor 500W Brushless Motor
Max Speed 32km/h
Range 55km(pure electric); 110km(pedal assist)
Throttle Half twist throttle
Front Fork Suspension Oil pressure shock absorber front fork with lock
Transmission Shimano 7 speed gear shift
Motor Gear 0-5 level
Brake Dual disc brakes
Bike Frame 6061 aluminum alloy frame
Controller Brushless DC Controller
Tires 27.5”x 2.1” KENDA tires
Charging Time 4-6 hours
Battery Type Lithium battery 18650ZN
LCD Display Speed display, battery display, ODO display, Gear display, Single mileage display fault display, power display
Suitable Height 1.6-2.1m
Handelbar 1.09m
Saddlebar 0.84-0.89m
Curb Weight 24.5kg; 54lbs
Payload 180kg
Waterproof IP54
Product dimension 1.8*0.67*1.09m
Certification CE/UL/KC/FCC/PSE/ROHS/MSDS/UN38.3
Payment Terms︰T/T
Export Markets︰Worldwide
Payment method︰T/T
Min Order︰50 sets
Ship Date︰5-90 days EU/US/UK/Canda Stock
Standard Met︰CE/UL/KC/FCC/PSE/ROHS/MSDS/UN38.3
