Electric bicycle RS-A01 120KM range cargo electric bike

BLACK
  • BLACK
  • White
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
  • Electric bicycle RS-A01 120KM range cargo electric bike
Model No.︰RS-A01
Brand Name︰OEM
Country of Origin︰China
Minimum Order︰50 pc
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

1. Using the hidden lower tube battery box design
2. Adopt 14AH, DMC East magnetic 18650 electric core, long relay range of electric mode up to 60KM.
3. Adopt 750W high power high speed motor
4. Using the center intelligent large screen LCD color LCD meter
5. Aluminum alloy CNC tooth plate
6.26*3.0 CTS thicker tires with better grip. 3.0 snow tires are between 4.0 snow tires and normal 2.0 tires, with better performance and grip

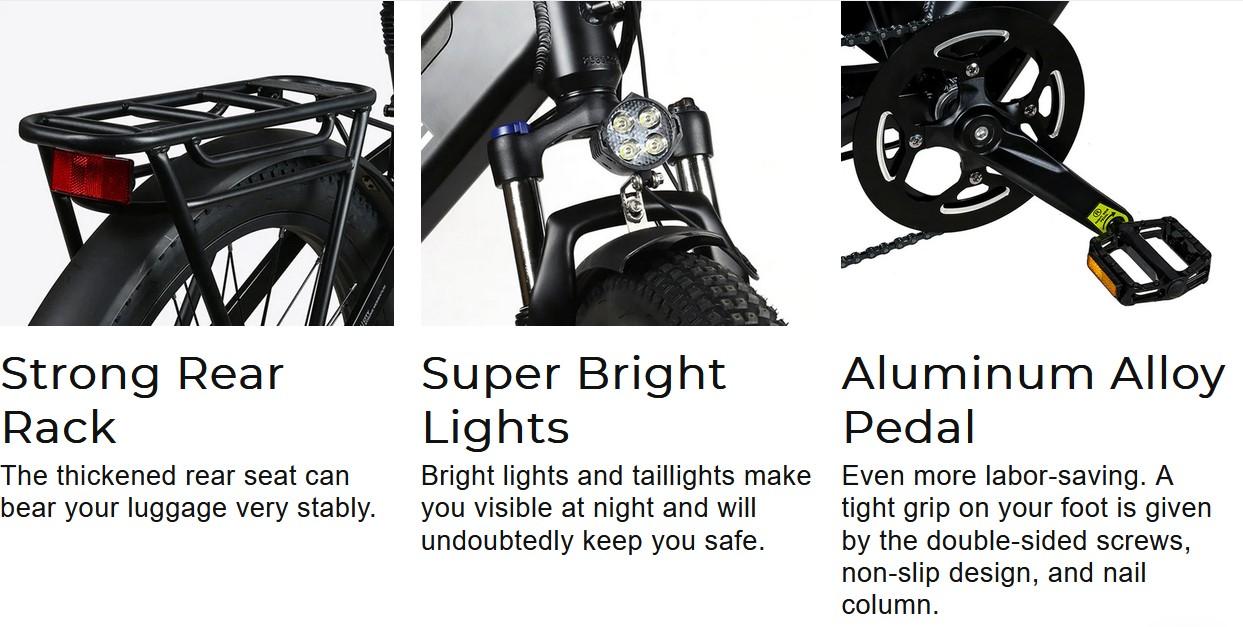

7. Front basket + rear rack, more convenient to travel and carry things
8. No upper beam design to facilitate the difficulty of getting on and off the car

Battery Capacity 48V 14AH
Hub Motor 750W Brushless Motor
Max Speed 40km/h
Range 55km(pure electric); 110km(pedal assist)
Throttle Half twist throttle
Instrument Color LCD display + USB charging port
Front Fork Suspension Oil pressure shock absorber front fork with lock
Rear Suspension Saddle tube and saddle double shock absorbers
Transmission Shimano 1*7 speed gear shift
Brake Dual disc brakes
Motor Gear 0-5 level
Climbing degree 40°
Bike Frame 6061 aluminum alloy frame
Controller Brushless DC Controller
Tires 26”x 3” CTS tires
Charging Time 4-6 hours
Battery Type Lithium battery 18650ZN
LCD Display Speed display, battery display, ODO display, Gear display, Single mileage display fault display, power display
Chain KMC chain
Rim Aluminum alloy double high strength rim
Crank 170mm forged alloy
Mudboard PVC
Pedal Alloy pedal with reflectors
Handelbar 1.19m
Saddlebar 0.88-0.98m
Curb Weight 24kg; 53lbs
Payload 150kg
Waterproof IP54
Product dimension 1.87*7.45*1.19m
Certification CE/UL/KC/FCC/PSE/ROHS/MSDS/UN38.3


























Payment Terms︰T/T
Export Markets︰Worldwide
Payment method︰T/T
Min Order︰50 sets
Ship Date︰5-90 days EU/US/UK/Canda Stock
Standard Met︰CE/UL/KC/FCC/PSE/ROHS/MSDS/UN38.3
Product Image

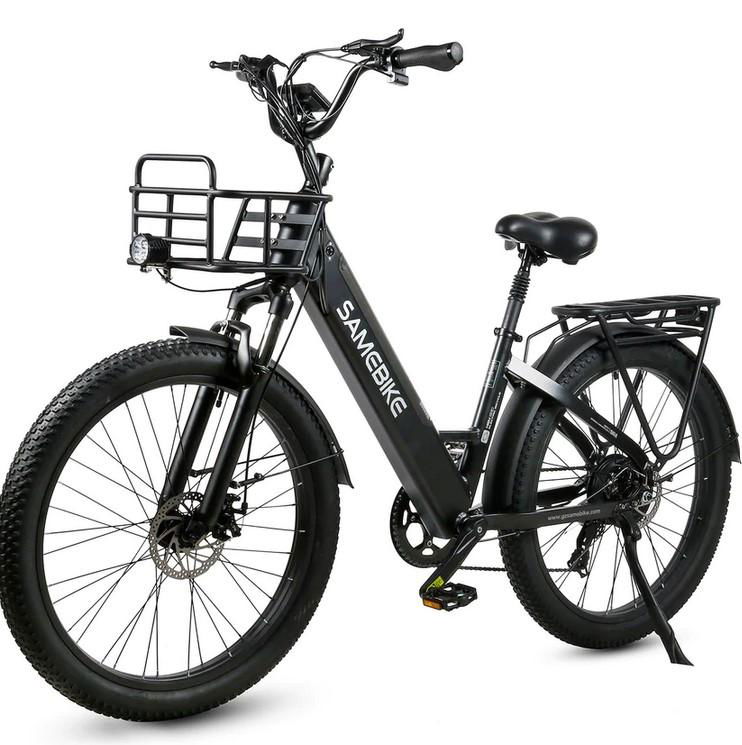

BLACK
BLACK

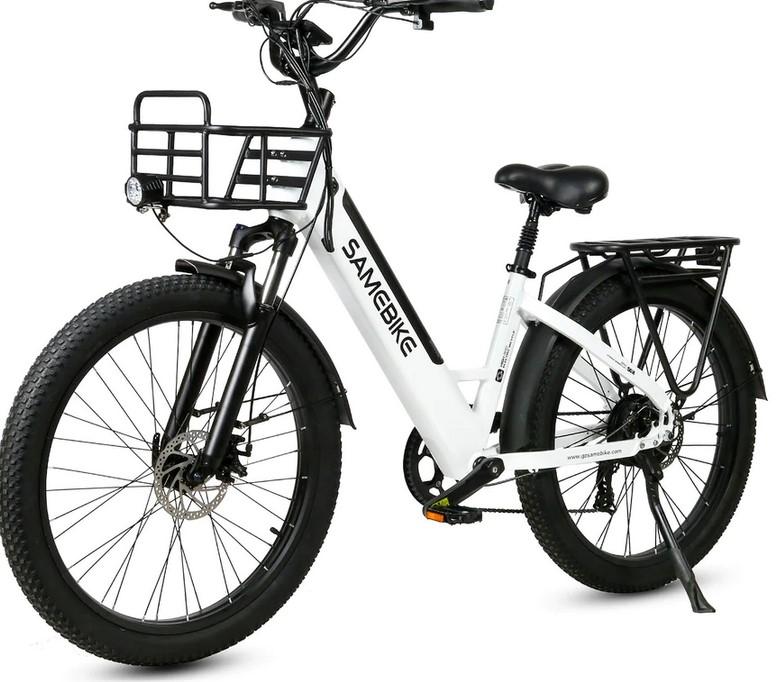

White
White
