solar power system

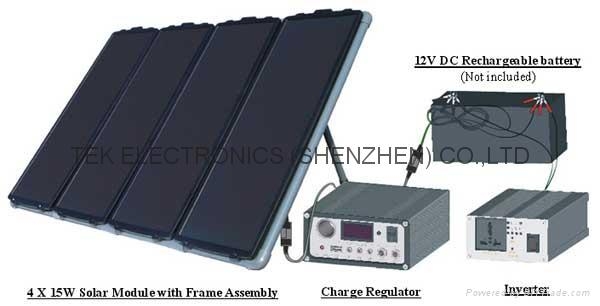

TPS-204 solar DC lighting system

Description:
A solar generator kit to power your application with free sunlight
Ideal for RVs,boats,and remote& backup power requirements such as cottage
Amorphous technology ,working even in cloudy weather condition
Green energy & environmental friendly
No running cost
Power generated from this system in one week can run following items:

Power generated from this system in one week can run following items
Description
power consumes
Hours of use
CB radio
5Watt
336
Depth finder
5Watt
336
Laptop computer
50Watt
33.6
Lights(compact 40Watt equivalent)
10Watt
168
TV12’
20Watt
84
Cooler 12V (3A)electric
36Watt
46.6
Stereo
50Watt
33.6
Satellite dish
30Watt
56



TPS-205 12W solar DC light kit



Description:
Support lighting and power for some small DC application
Simple lighting system ,practicality ,low-coat
easy to assembly
No running cost ,all you need is free sunlight
Connecting adaptor for 3V,6V,12V application
 After one days fully charge can support lighting for 6-7 hours

system components
Data
Quantity
12W solar module
72Wh(6hours charging)
1pcs
Controller
5A Provide overcharing over discharging protection
1pcs
Battery
7Ah/12V
1pcs
DC light
5W/12V
2pcs
900pcs in 20’ container ,1800pcs in 40’container

40W A-Si Mini solar power kit



Description:
The solar module can charge the battery at daylight ,and power 2pcs 5W/12VDC lamps over 10 hours.


Part list
Item
40W/17.5V A-Si Solar module
Regulator
Lamp
Battery
Spec
40W/pcs 645*1255*38mm
12V/10A
5W/12VDC
12V/33AH
Item Qty
1pcs
1pcs
1pcs
1pcs

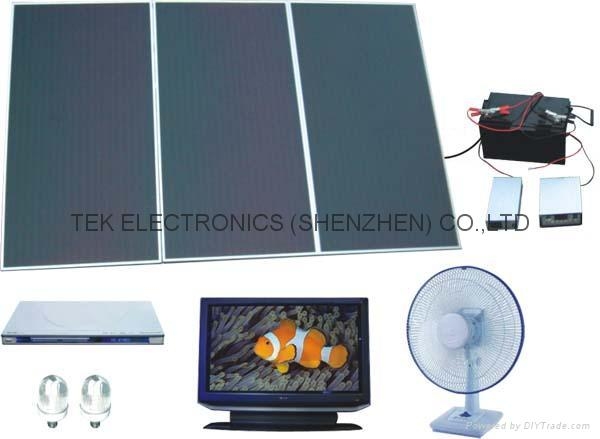

120 A-Si Mini Solar power kit



Description:

The solar module can charge the battery at daylight ,and power 2pcs 5W/12VDC lamps ,TV,Electric Fan,DVD over 3-4 hours



Part list
Item
120W/17.5V A-Si Solar module
Regulator
Inverter
Battery
Spec
40W/pcs 645*1255*38mm
12V/10A
150W
12V/80AH
Item Qty
3pcs
1pcs
1pcs
1pcs
Item
Electric Fan
TV
DVD
Lamp
Spec
60W
70W
30W
5W/12VDC
Item Qty
1pcs
1pcs
1pcs
1pcs

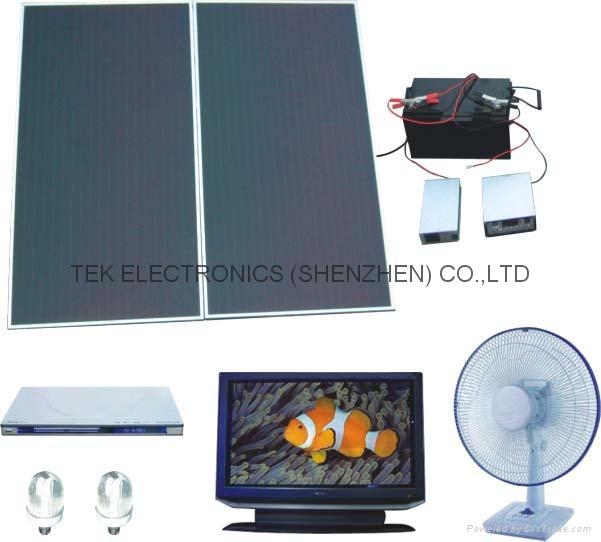

80W A Si-Mini solar power kit



Description:

The solar module can charge the battery at daylight ,and power 2pcs 5W/12VDC lamps ,TV,Electric Fan,DVDover 2 hours



Part list
Item
80W/17.5V A-Si Solar module
Regulator
Inverter
Battery
Spec
40W/pcs 645*1255*38mm
12V/10A
150W
12V/80AH
Item Qty
2pcs
1pcs
1pcs
1pcs
Item
Electric Fan
TV
DVD
Lamp
Spec
60W
70W
30W
5W/12VDC
Item Qty
1pcs
1pcs
1pcs
1pcs


160W A-Si Mini solar power kit



Description:

The solar module can charge the battery at daylight ,and power 2pcs 5W/12VDC lamps ,TV,Electric Fan,DVD over 4-5 hours



Part list
Item
160W/17.5V A-Si Solar module
Regulator
Inverter
Battery
Spec
40W/pcs 645*1255*38mm
12V/10A
150W
12V/100AH
Item Qty
4pcs
1pcs
1pcs
1pcs
Item
Electric Fan
TV
DVD
Lamp
Spec
60W
70W
30W
5W/12VDC
Item Qty
1pcs
1pcs
1pcs
2pcs


TPS-696 Solar mosquito killer

Description:

Powered by built-in 2 pieces of 70*70mm Amorphous solar cell

2*1.2V/900mAh Ni-Cd battery
Use blue light attract Mosquito,fly ,and kill them with the High voltage (1000VDC)metal net around the light
Plastic fence design to prevent children from touching the metal net,while allow the samll insect to fly in
Comes with plastic base for use indoor
Package : 12pcs in one shipping carton
Product size : 173*100*550mm
N.W. : 5.76Kgs G.W.: 6.8Kgs

6110pcs in 20’ container , 12600pcs in 40’container

TPS-656 Solar moler chaser



Description:
TPS-656 TPS-6561
Drives away burrowing pests like moles,voles and gophers functions day and night Drives away burrowing pests like moles,voles and gophers functions day and night
Integrated 90*70mm amorphous silicon solar panel Integrated 70*70mm amorphous silicon solar panel
Integrated 3.6V Ni-Cd batteries Integrated 1.2V Ni-Cd batteries
Emits sonic tone every 30 seconds Emits sonic tone every 50 seconds
Metal spike with sonic transmitter Metal spike with sonic transmitter
Charges even in winter and when sunlight low  Charges even in winter and when sunlight low
Covers up to 6000 ft2 Covers up to 6000 ft2
Environmentally friendly and safe
 Environmentally friendly and safe
No operating costs No operating costs
Packiing information
Package Foam cutout +inner box +outer carton,two units packed in a foam cutout,then into an inner box,10 inner box (20pcs) per outer carton
Outer carton size 57.5*41*37.5cm
Gross weight 15Kgs
Product size Diameter :14.5cm,Height :44cm
Packiing information
Package Each in gift box,then 20units in an outer carton
Outer carton size 54.5*39.5*50cm
Gross weight 10Kgs

TKS-105 Crystalline Solar Module



Description:
Highly sufficient and stable polycrystalline solar panel
Different power output available, range from 5 Watt to 100Watt
Comes With junction box and by pass diode
Charge 6V and 12V batteries of all type. Can be used as power source for power stations,
or battery charger for vehicle, boat, electric fence, pump….
Multiple pieces can be connected to acquire higher power

Lamination:

Anodized aluminum alloy frame

Low iron high transparency temper glass cover

Solar cell embedded in EVA (ethylene vinyl acetate)

Tedlar foil backing


Absolute maximum limits:
Parameters Rating Unit
Operation temperature -40 to + 85 º C
Storage temperature -40 to + 85 º C
Dielectric Voltage withstand 1800max V-DC

Temperation coefficients:
Current temperature coefficient
α(1sc)
+0.1% / ºC
Voltage temperature coefficient
β(Voc)
-0.38% / ºC
Power temperature coefficient
Υ(Wp)
-0.47% / ºC

Specification Sheet(125*125mm)
Output Power (Peak W )

Dimension

( mm)

Weight

( kg )

Working voltage

Vop(V)

Working current

Iop(A)

Open voltage

Voc(V)

Short circuit current

Isc(A)

SLA battery Voltage (V)

3
158X241X25
0.5
8.5
0.36
10.5
0.4
6
4
308X166X25
0.77
8.5
0.47
10.5
0.54
6
4
16.8
0.24
21
0.27
12
5
296X215X25
0.3
16.8
0.48
21
0.54
12
8
286X330X25
10
286X406X25
1.5
16.8
0.59
21
0.66
12
12
16.8
0.71
21
0.8
14
286X541X25
2
16.8
0.83
21
0.96
12
15
16
17.2
0.93
21.5
0.99
18
296X641X25
2.4
16.8
1.07
21
1.2
12
20
17.2
1.15
21.5
1.24
24
541X451X25
3.15
16.8
1.43
21
1.56
12
26
17.2
1.51
21.5
1.63
30
296X966X25
3.85
16.8
1.78
21
2.03
12
36
541X641X35
4.7
16.8
2.14
21
2.4
12
40
17.2
2.33
21.5
2.5
55
1057X457X35
6.6
17.60
3.12
21.6
3.3
12
70
546X1196X35
8.5
16.8
4.16
21
4.7
12
75
17.2
4.36
21.5
4.8
80
17.6
4.55
21.6
4.9
110
1066X811X40
11.8
17.60
6.25
21.6
6.6
150
809X1581X40
14
34.4
4.36
43.2
4.7
24
160
34.4
4.65
43.2
4.9
170
35.2
4.83
43.2
5.03
180
35.2
5.1
43.4
5.5
